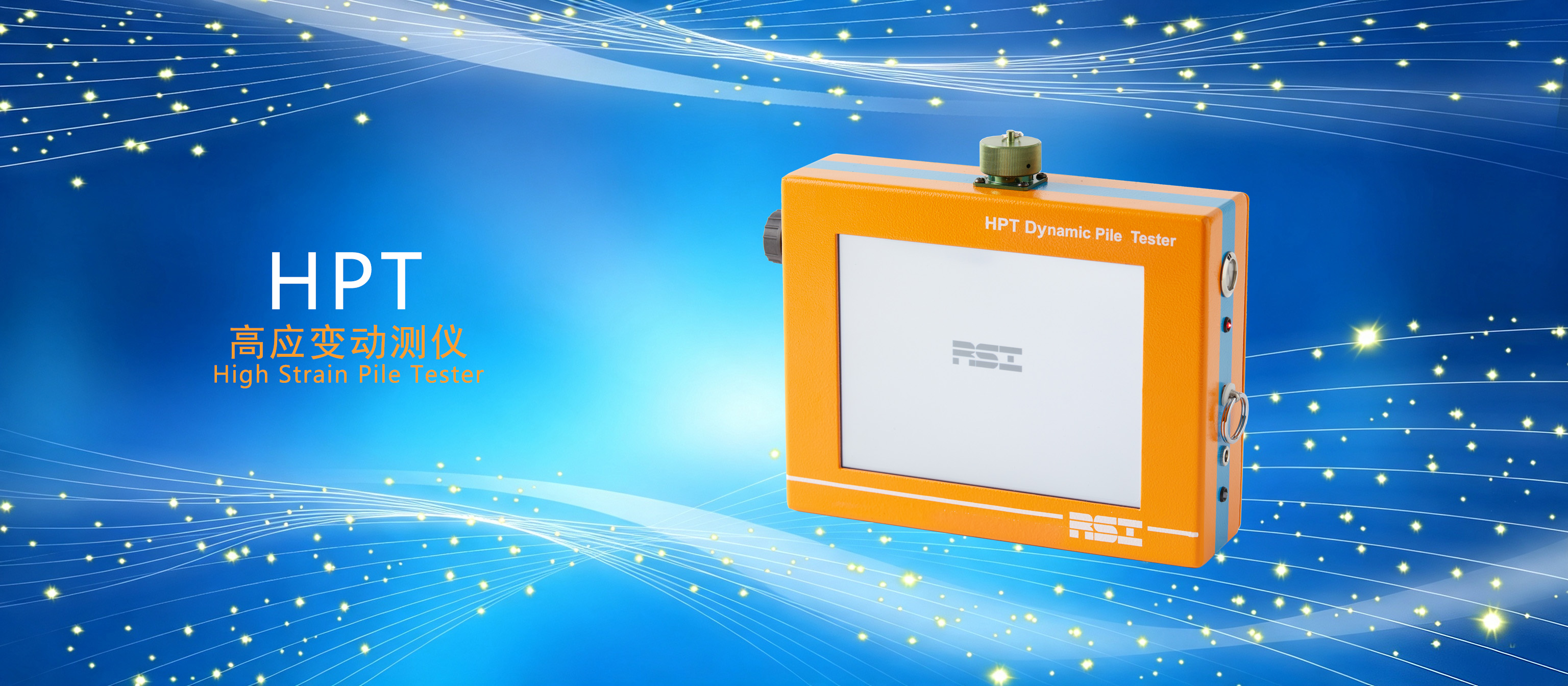

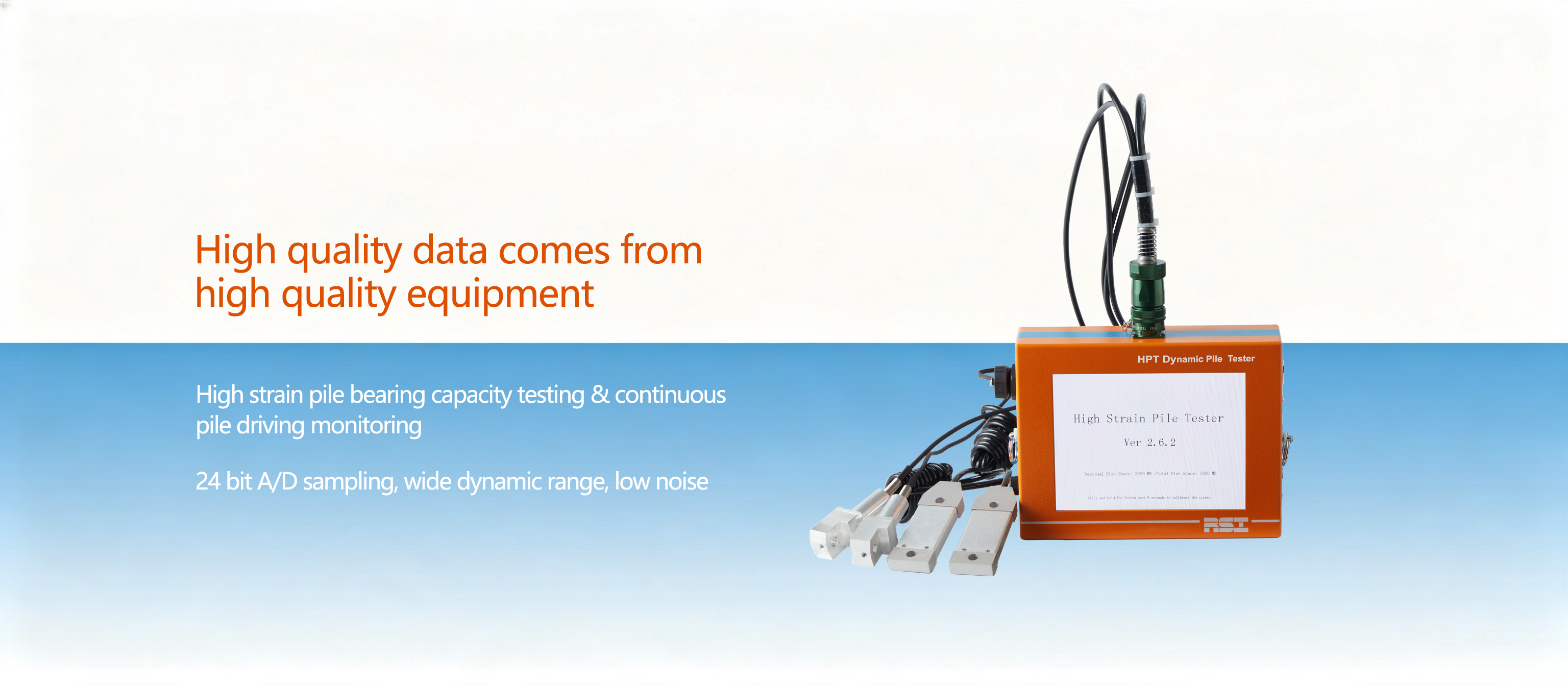

HPT High Strain Pile Tester

DescriptionPerformanceInterfaceConfiguration

Features

Developed and manufactured according to high level hardware and software design

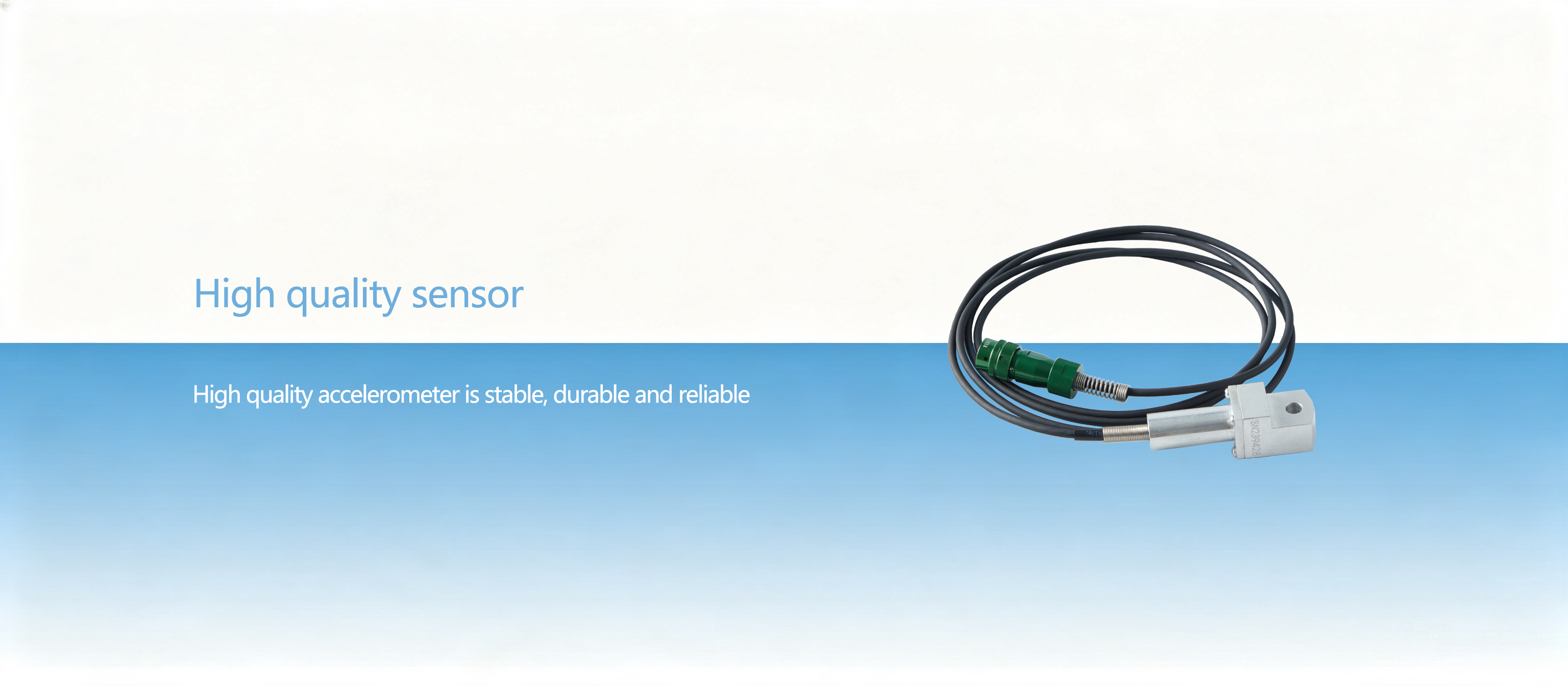

High performance accelerometer
2000 µ ε Large range strain sensors with protection on both sides
High-precision AD resolution of 24 bits
Sampling frequency is adjustable in three levels: 10kHz, 20kHz and 40kHz
Sampling lengths is adjustable in three levels: 1024 points, 2048 points and 4096 points. The maximum sampling time can reach 400ms
Can self check accelerometer and strain sensors during test, to evaluate and display the statue of the system
Can automatically check the static strain deviation value of the strain sensor in real-time due to installation, and automatically perform correction before test
Data exported through U disk
Continuous sampling with automatic saving, capable of saving over 100000 measured curves
Can be used for testing the bearing capacity and integrity of cast-in-place piles
Specially designed for continuous pile driving monitoring testing
Data format is compatible with PDA (. X01 format)
Main cable, 1-4 connection cable, sensor and its connectors is compatible with PDA
Built-in lithium battery, last for 6 hours for continuous operation
Remote data transmission and on-site GPS positioning

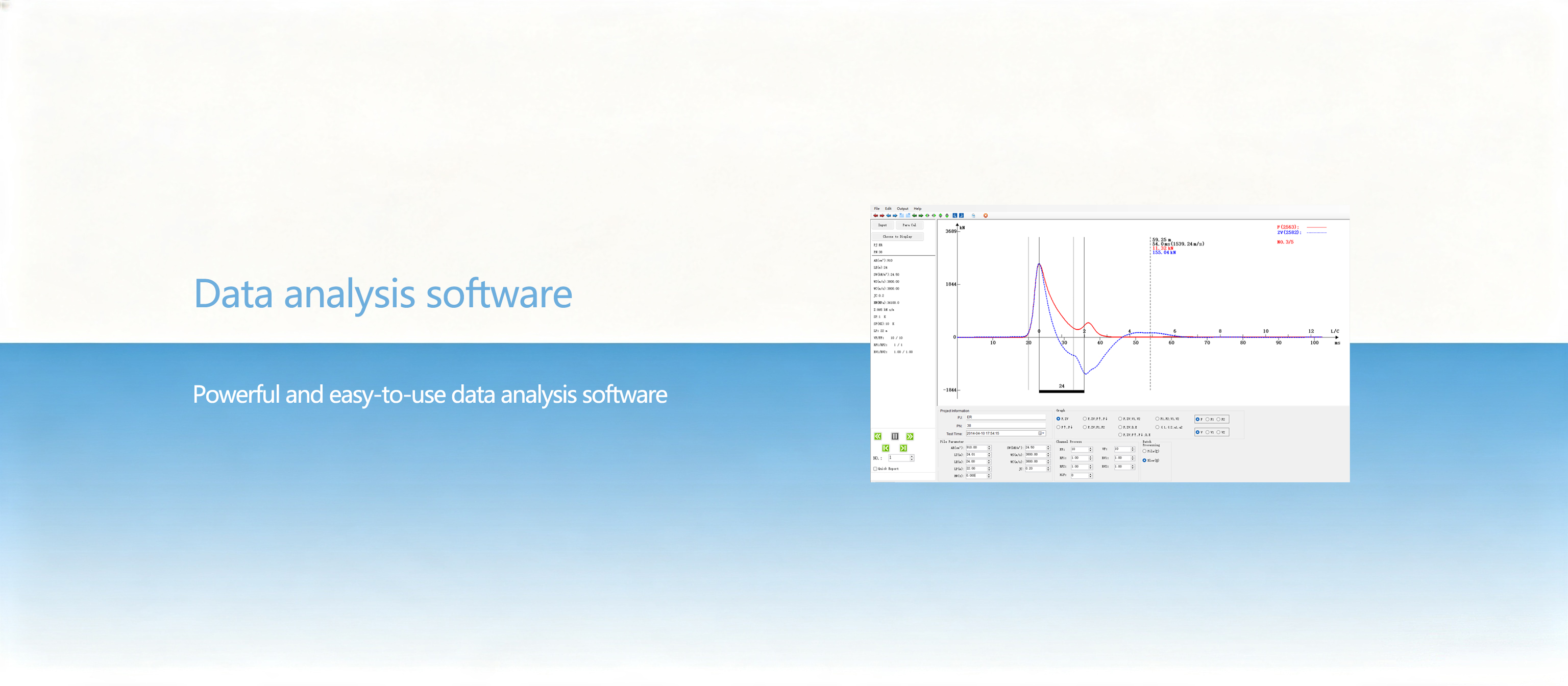

Case analysis software for real-time calculation and analysis

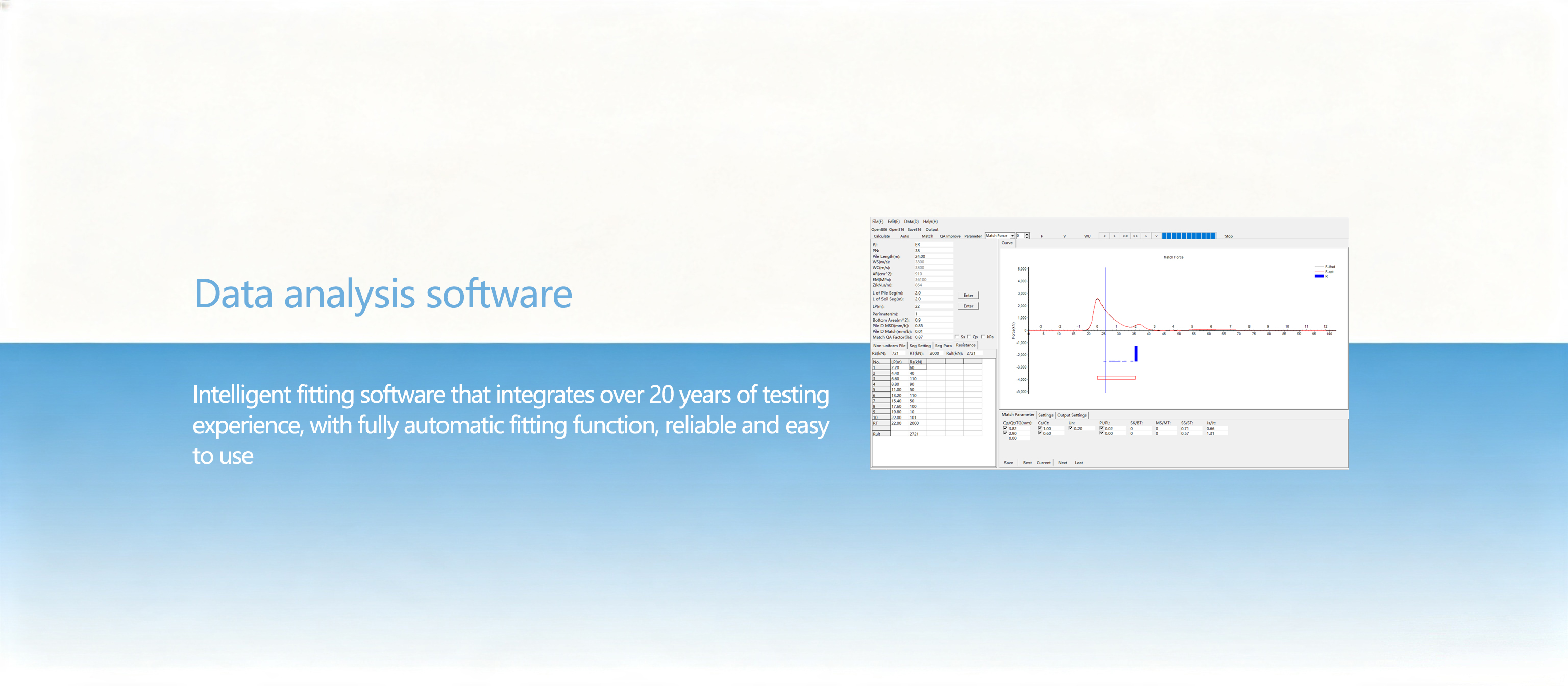

Intelligent and fully automatic fitting analysis software

Specifications

Main unit size: 225×172×62mm
Main unit weight: 2.0kg

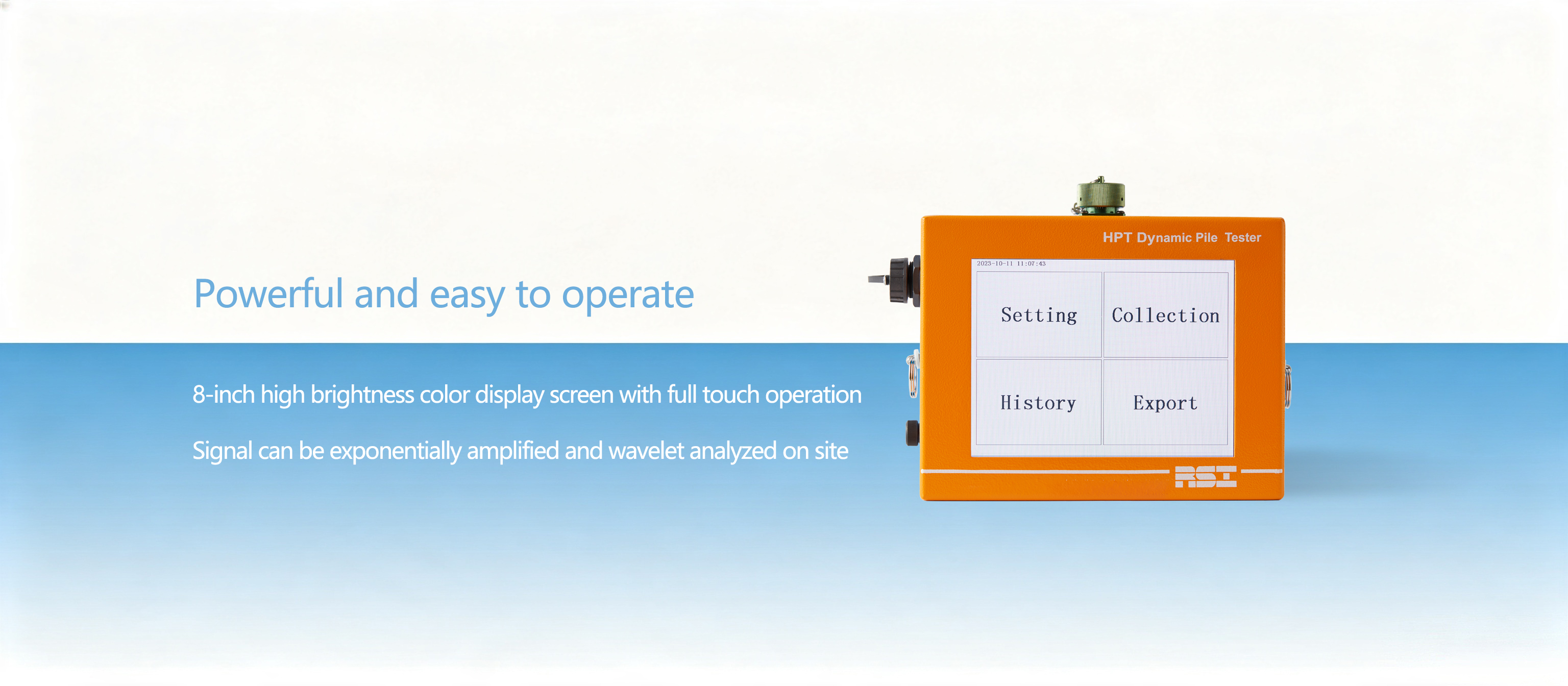

8-inch touch screen and high brightness color LCD display screen
All connectors are military grade aviation plugs, metal housing, fully enclosed, dustproof and waterproof
