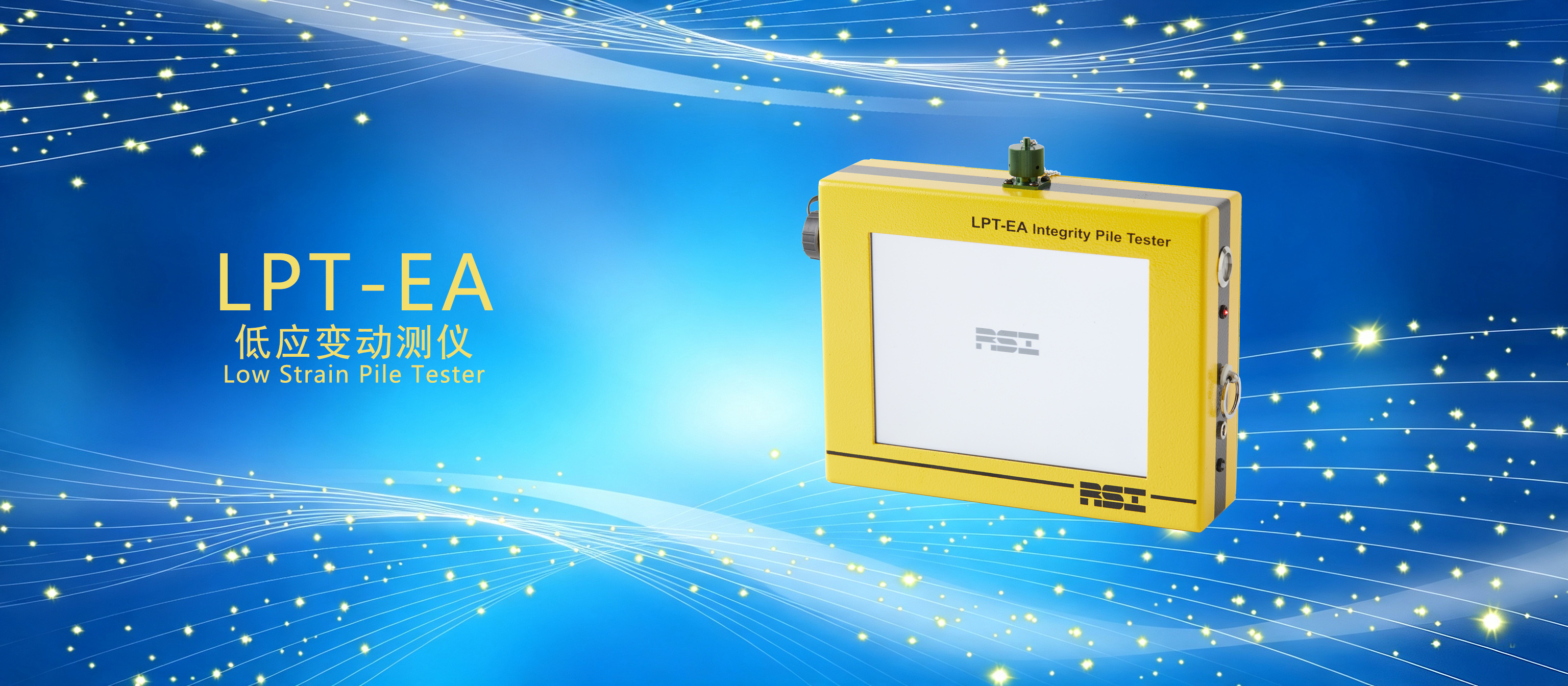

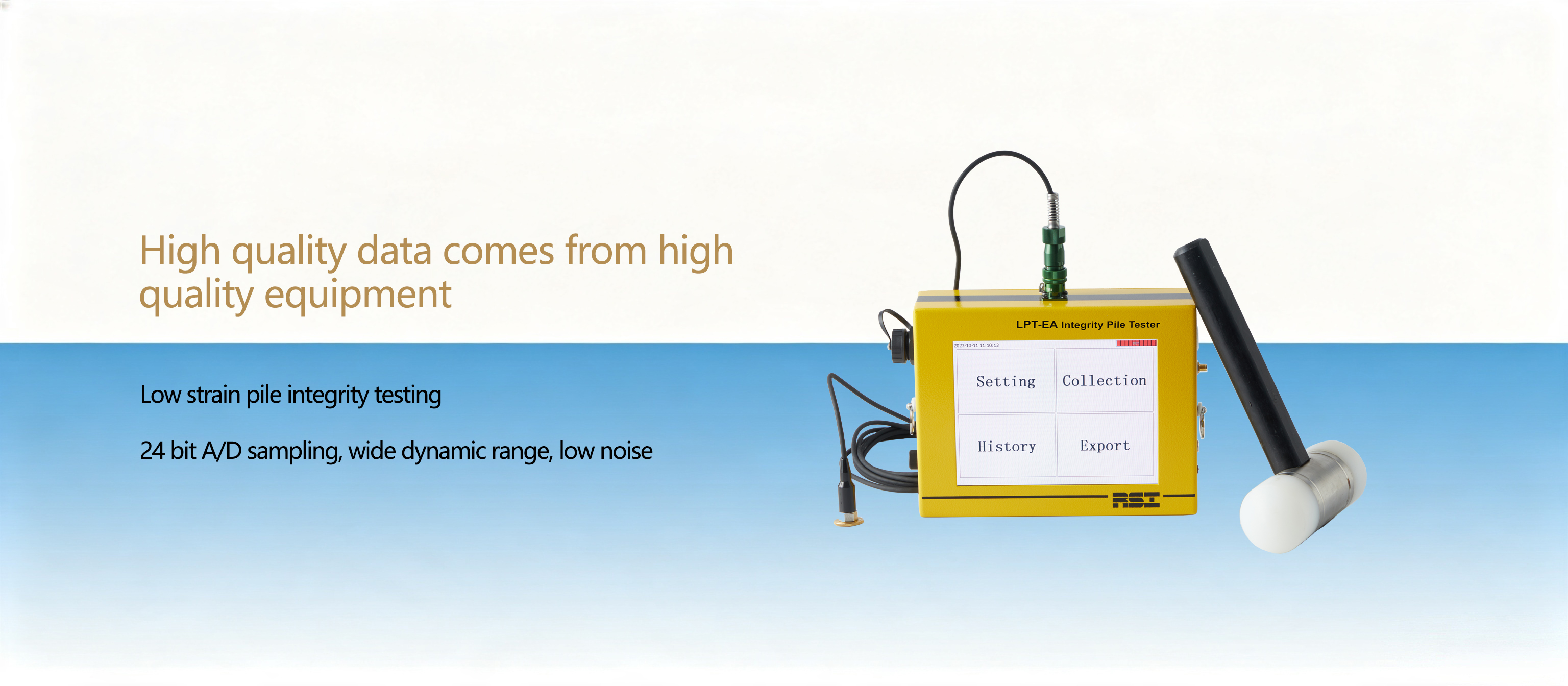

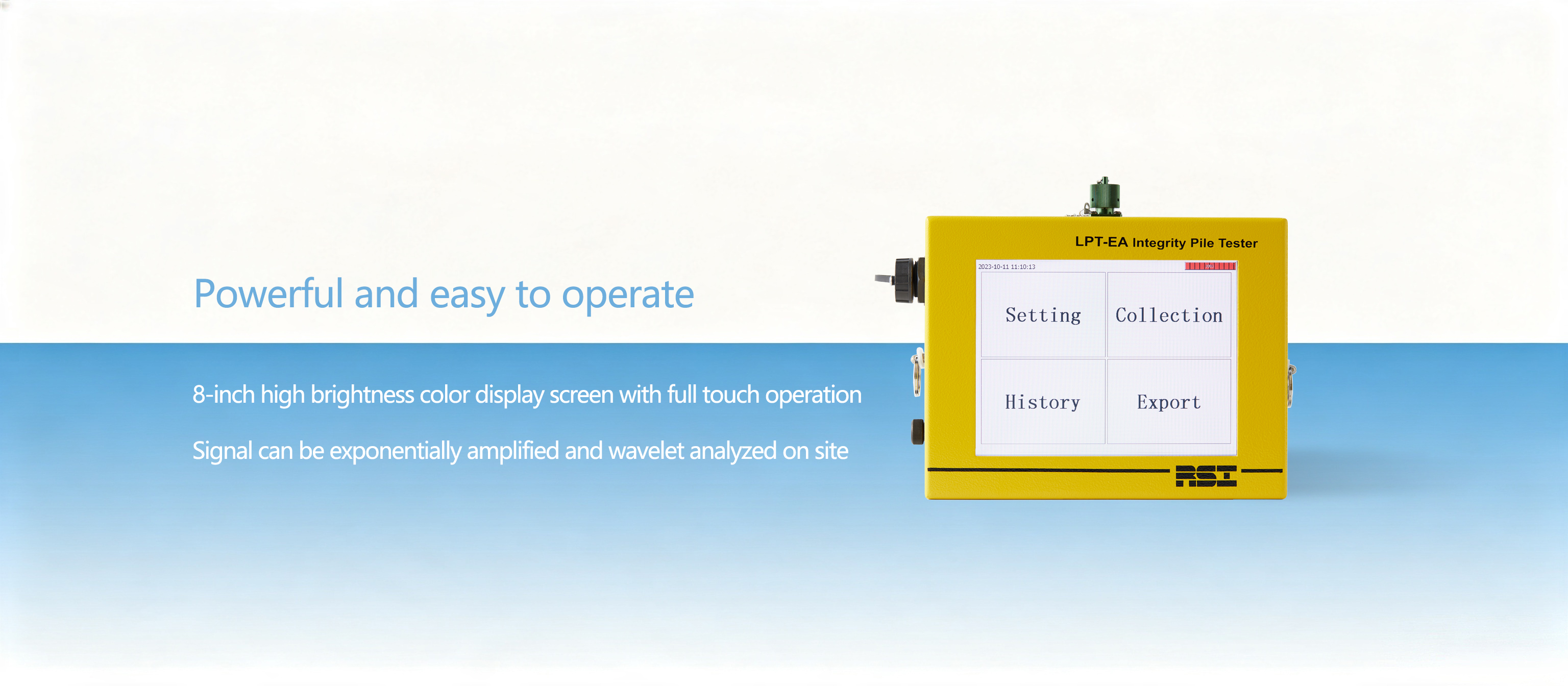

LPT-EA Low Strain Pile Tester

DescriptionPerformanceInterfaceConfiguration

Features

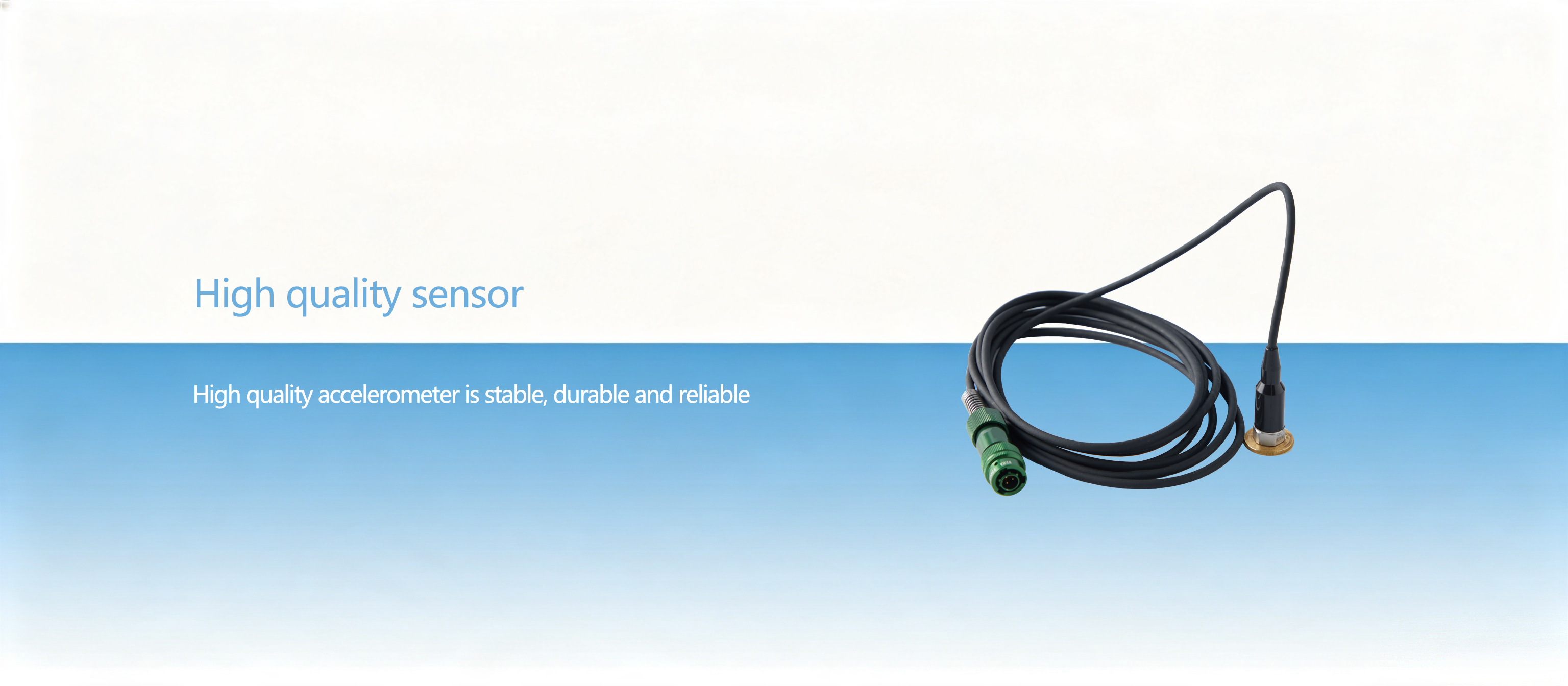

High performance accelerometer
High-precision AD resolution of 24 bits
Sampling frequency is adjustable in three levels: 48kHz, 96kHz and 144kHz
Sampling length 4096 points
With the function of multiple hammer average superposition when collecting data on site
Automaticly count the number of detected piles on site
Data exported through U disk
Wavelet analysis
Continuous sampling, with optional automatic or manual saving, capable of saving over 100000 measured curves
Simultaneously sampling, capable of performing exponential amplification and wavelet analysis, etc
Built in lithium battery, last for 6 hours for continuous operation
Remote data transmission and on-site GPS positioning

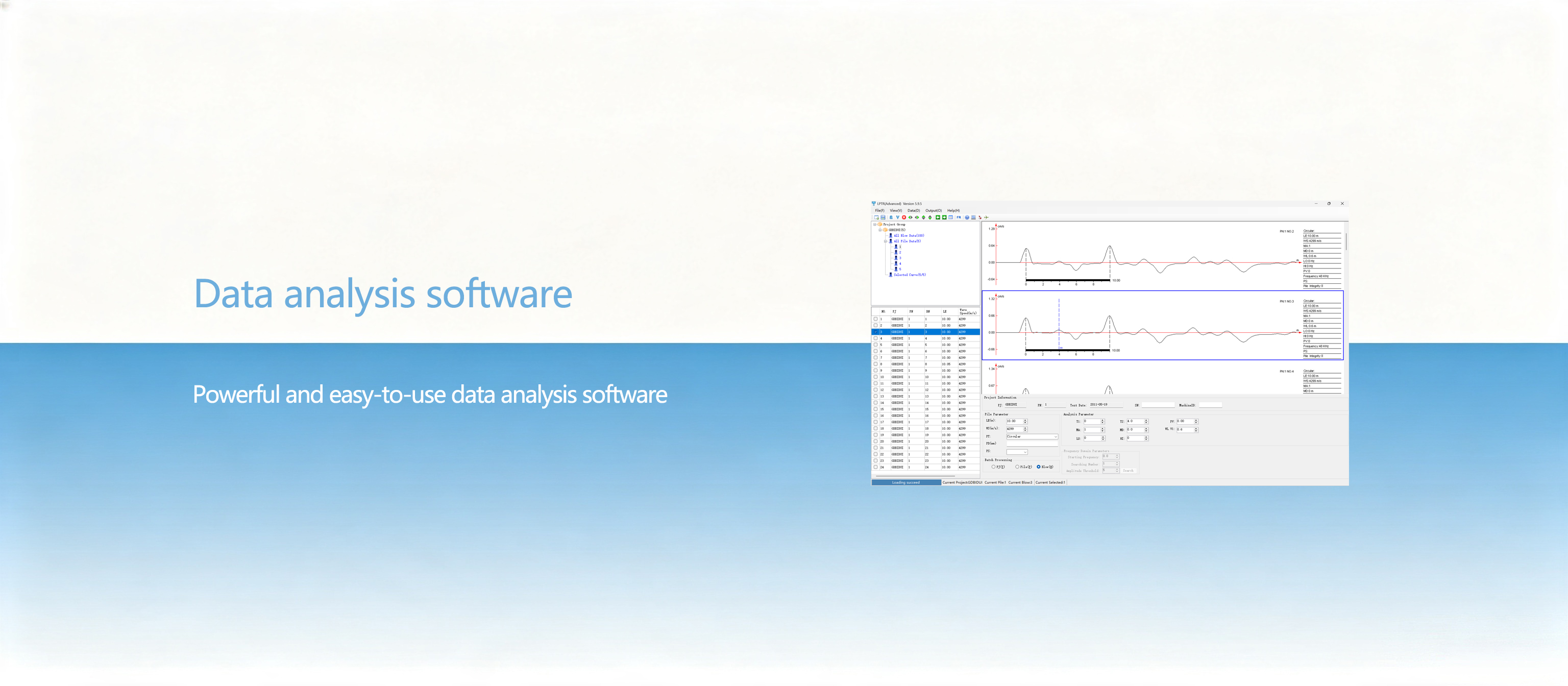

Software

The analysis software is fully functional and easy to use. Not only have conventional analysis functions such as exponential amplification, high pass and low-pass filtering, but also have advanced wavelet analysis functions to eliminate the false signal, revealing the essence of the pile quality
When analyzing data, there are three modification methods in "modification range": "project", "pile" and "hammer", implemented batch processing of measured curve analysis, greatly improving the speed and efficiency of data analysis
Automatic calculating pile defect position, capable of identifying multiple defects on the measured curve
Can perform frequency domain analysis to assist in defect detection and positioning
Can quantitatively calculate the impedance shape of the pile, generate impedance - depth relationship diagram, to help estimate the shape of the pile
Can perform dual velocity analysis to separate upstream and downstream waves, to assist in analyzing existing structures or piles with unknown lengths
The integrity judgment results can be directly output to summary table without manually editing
