LPT-EV Wireless Low Strain Pile Tester

      Features

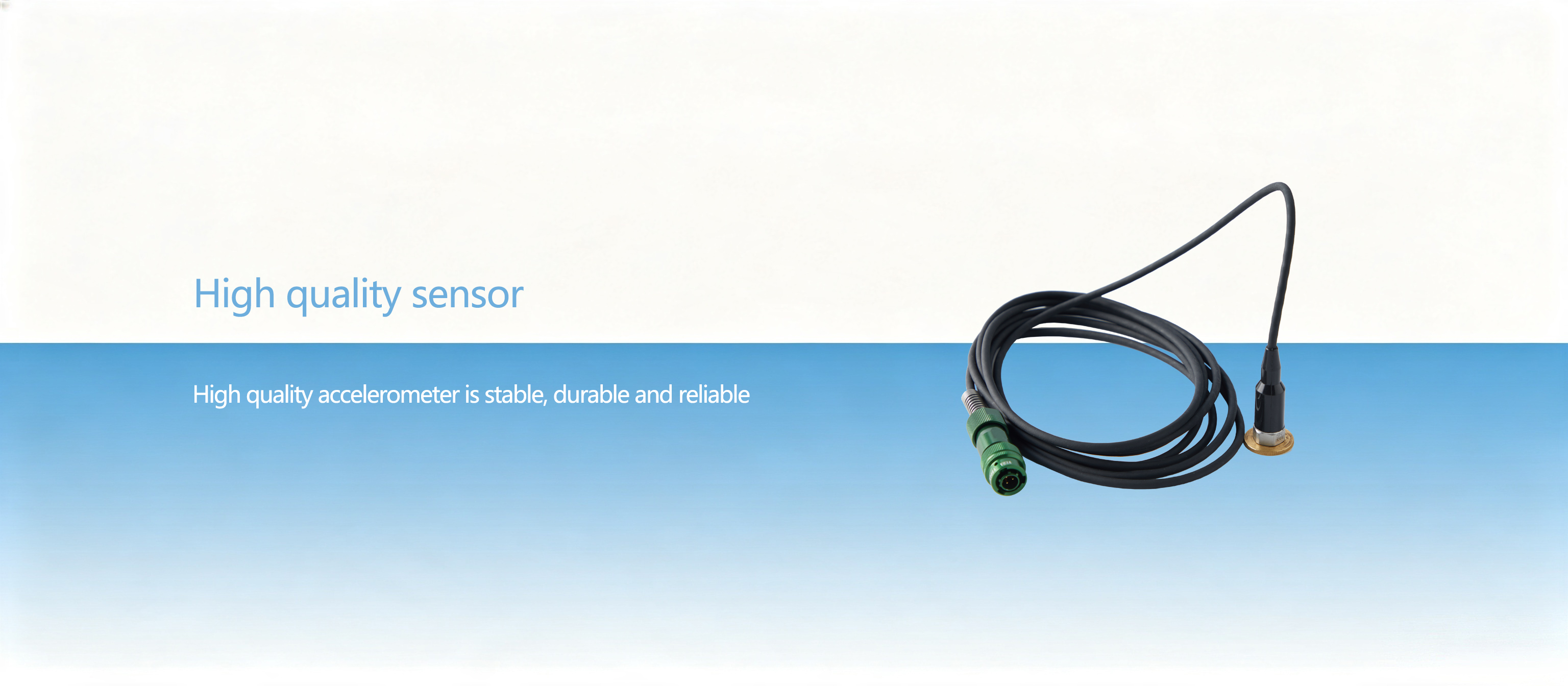

• High performance accelerometer

• High-precision AD resolution of 24 bits

• Sampling frequency is adjustable in three levels: 48kHz, 96kHz and 144kHz

• Sampling length 4096 points

• With the function of multiple hammer average superposition when collecting data on site

• Automaticly count the number of detected piles on site

• Data exported through U disk

• Wavelet analysis

• Continuous sampling, with optional automatic or manual saving, capable of saving over 100000 measured curves

• Simultaneously sampling, capable of performing exponential amplification and wavelet analysis, etc

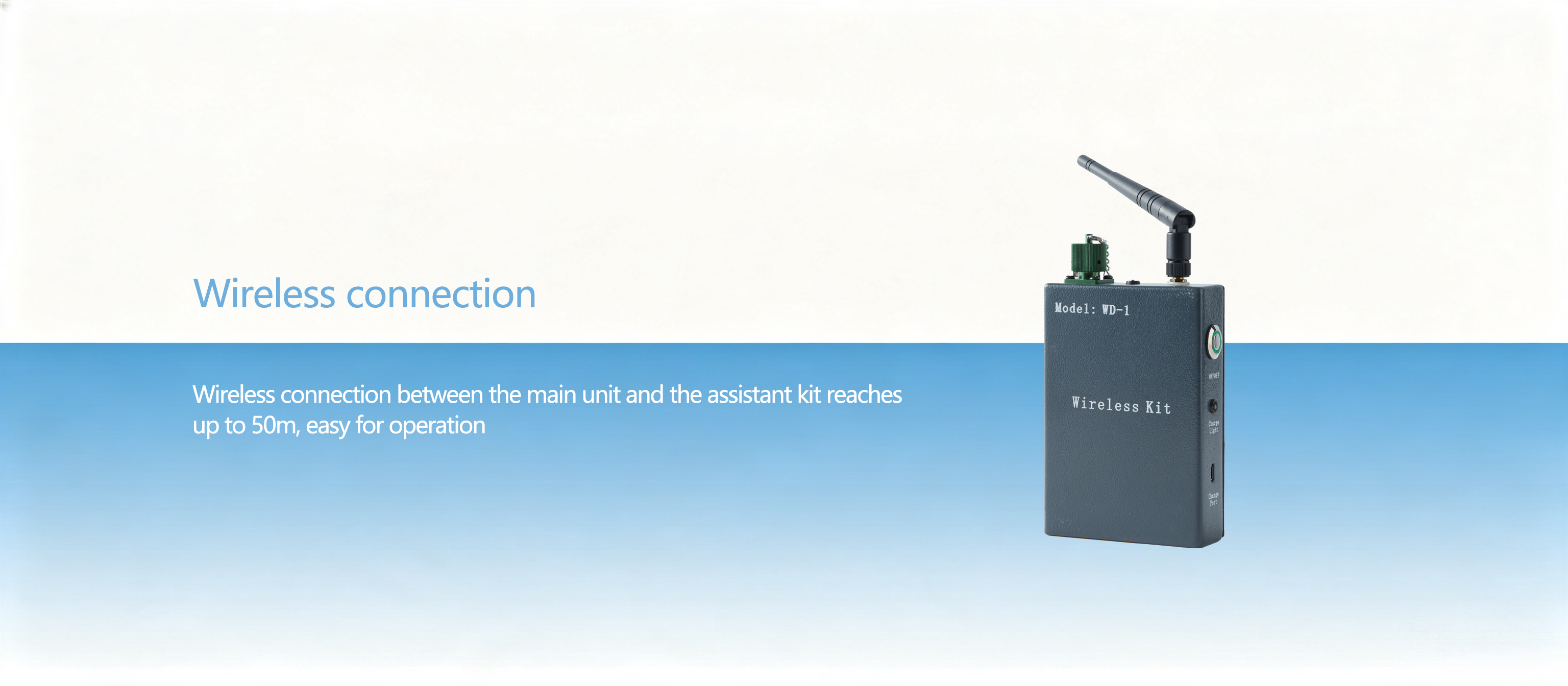

• Wireless transmission distance of over 30m

• Remote data transmission and on-site GPS positioning

      Software

• The analysis software is fully functional and easy to use. Not only have conventional analysis functions such as exponential amplification, high pass and low-pass filtering, but also have advanced wavelet analysis functions to eliminate the false signal, revealing the essence of the pile quality

• When analyzing data, there are three modification methods in "modification range": "project", "pile" and "hammer", implemented batch processing of measured curve analysis, greatly improving the speed and efficiency of data analysis

• Automatic calculating pile defect position, capable of identifying multiple defects on the measured curve

• Can perform frequency domain analysis to assist in defect detection and positioning

• Can quantitatively calculate the impedance shape of the pile, generate impedance - depth relationship diagram, to help estimate the shape of the pile

• Can perform dual velocity analysis to separate upstream and downstream waves, to assist in analyzing existing structures or piles with unknown lengths

• The integrity judgment results can be directly output to summary table without manually editing

      Specifications

• Main unit size: 228×147×16mm

• Main unit weight: 0.7kg

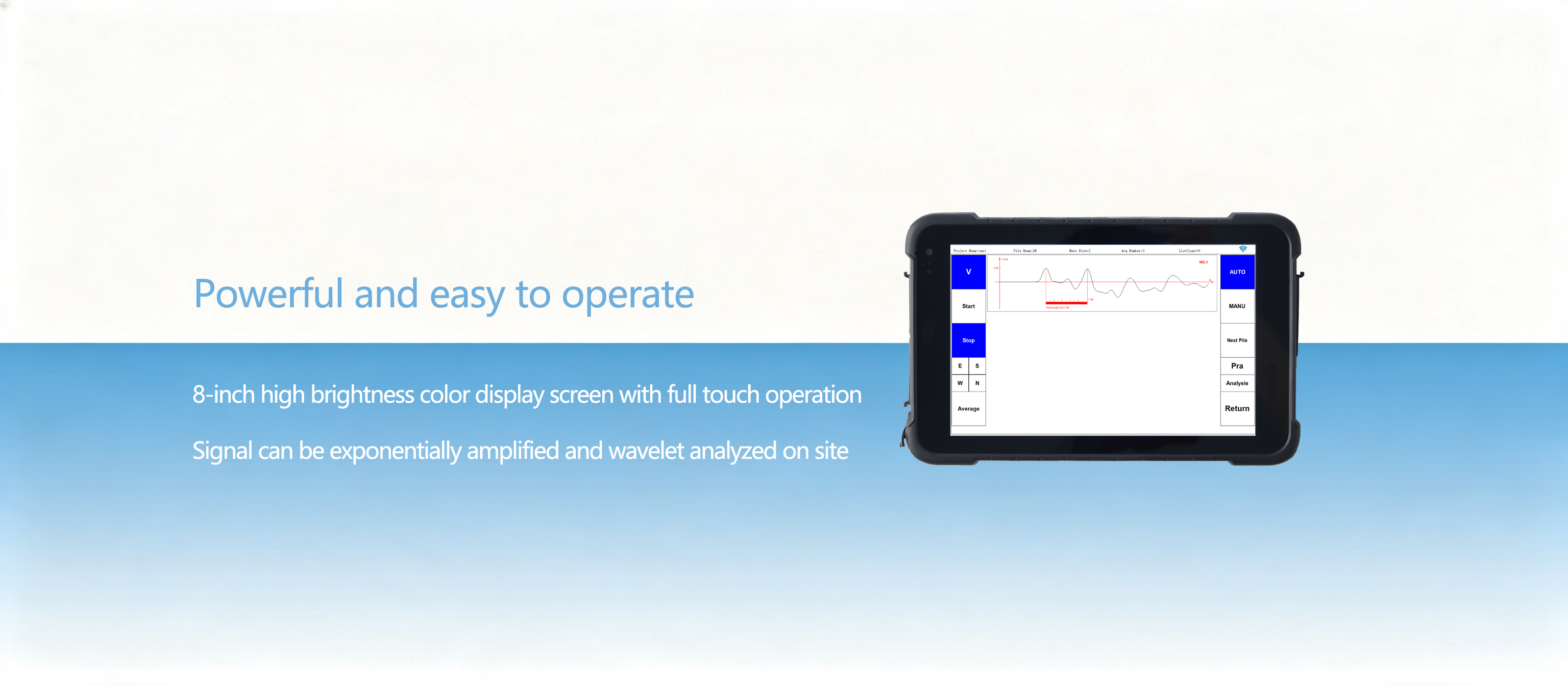

• 8-inch touch screen, visible in sunlight

• Mian unit fully enclosed, with a waterproof rating of IP67

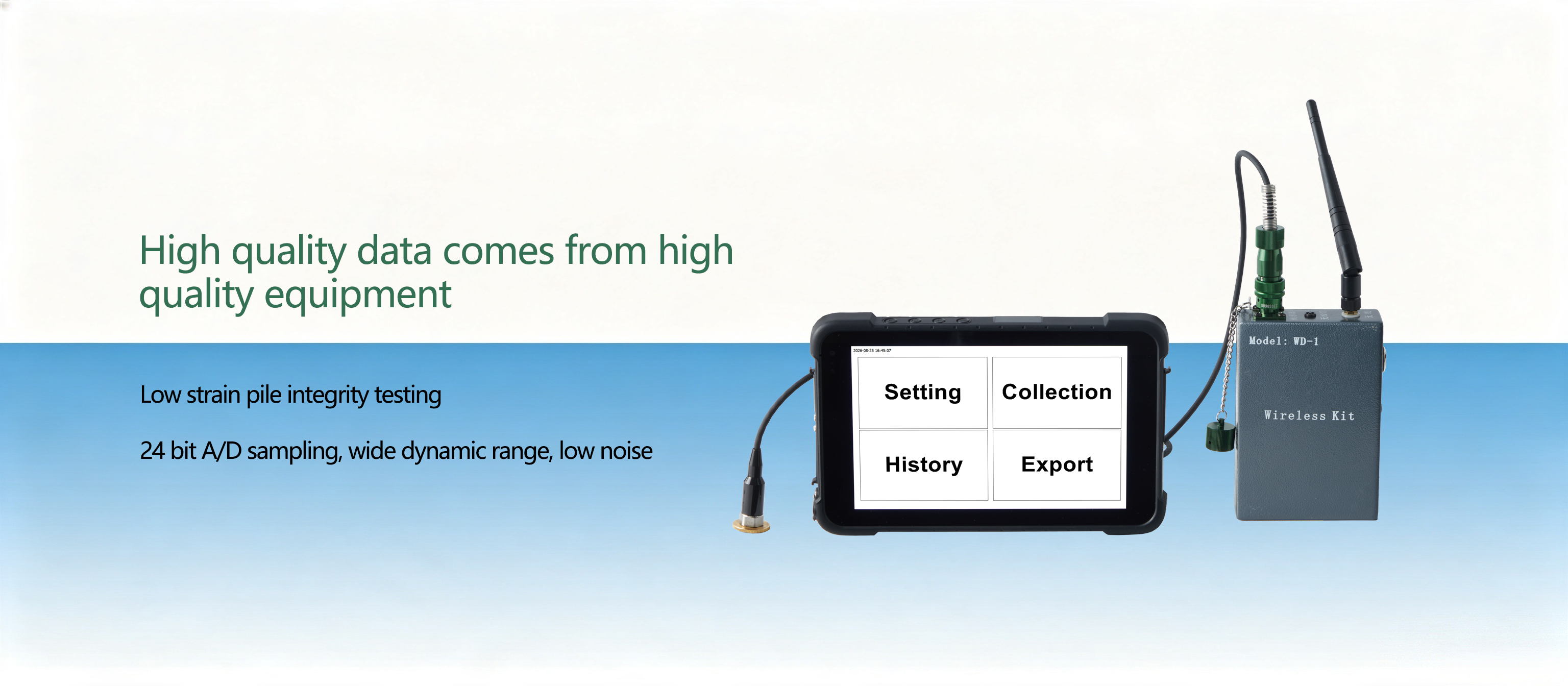

standard configuration

LPT-EV main unit	accelerometer	wireless kit
hammer	U disk	transport case

options

hammer head	micro rod	2.5kg rod

3.5kg rod	7kg rod
